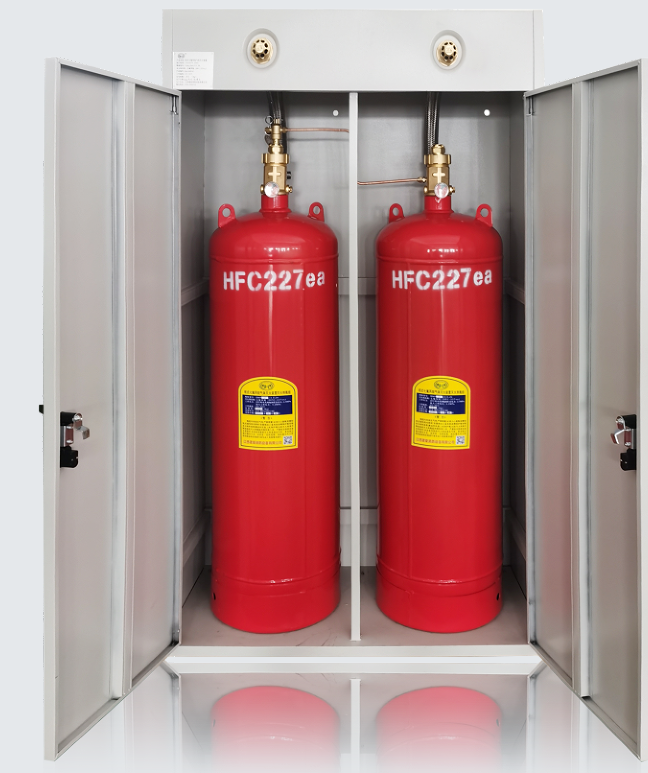

Stored-Pressure HFC-227ea Automatic Fire Suppression System,FM-200 / Stainless Steel Cabinet-Type HFC-227ea Dual-Cabinet Automatic Fire Suppression System，Factory manufacturer; supports OEM & ODM.
The piped HFC-227ea (FM-200) fire suppression system is an intelligent, automatic system comprising a cylinder rack assembly, extinguishing agent cylinder assemblies, container valves, high-pressure hoses, liquid check valves, a manifold, safety relief devices, selector valves, signal feedback devices, agent delivery piping, nozzles, pilot cylinders, actuators, pilot piping, and pilot gas check valves.
- Rapid Fire Suppression: FM-200 extinguishes fires through a dual mechanism of physical heat absorption and chemical inhibition. With a discharge time typically under 10 seconds, it rapidly suppresses fires.
- Residue-free and non-conductive: It leaves no residue after extinguishing a fire and possesses excellent electrical insulation properties.
- High reliability: A mature internal pressure storage system equipped with dual-redundant control units supports three activation methods—automatic, electrical manual, and mechanical emergency.
Product Description
Overview
This system utilizes heptafluoropropane (HFC-227ea) as the extinguishing agent. HFC-227ea functions primarily through chemical suppression while also providing a physical cooling effect; it is colorless, odorless, clean, non-conductive, and non-contaminating to protected assets, causing no damage to property or precision equipment. It does not deplete the ozone layer (with an ODP of zero) and meets environmental protection standards. In most protected areas, the extinguishing concentration remains below the No Observed Adverse Effect Level (NOAEL) for humans, ensuring safety for personnel; it is an excellent clean-agent fire suppressant.

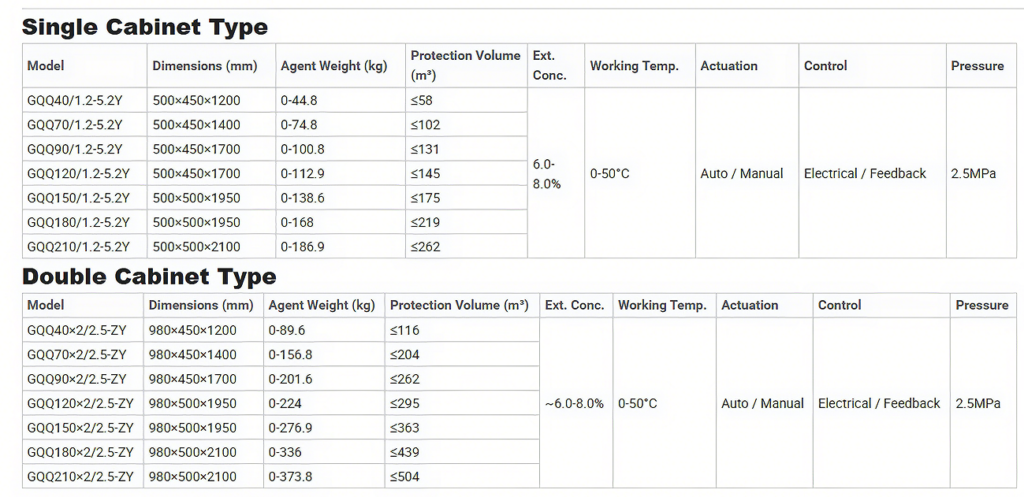

Specifications
| Product Name | FM-200 Fire Extinguisher |
| Volume | 90L、 120L、 150L、180L |
| Starting method | Automatic, manual, and mechanical emergency operation |
| Starting gas | Nitrogen |
| Starting gas charging pressure | 6MPa (20°C) |
| Working Temp. | 0-50°C |
| Ext. Conc. | 6.0-8.0% |
